HDPE - PE



High Density Polyethylene Rod / Sheet (HDPE) is a FDA Approved material of the highest quality with excellent impact resistance. HDPE has high tensile strength, low moisture absorption and is chemical and corrosion resistant. It is a light weight material that is non-toxic and non-staining and used in a variety of applications and industries.
HDPE materials are available in both rod and sheet. If you have special requirements, custom cut sizes, special-order colors, fabrication or machining requirement.


Features:

  • Meets FDA/USDA food handling guidelines (Natural white color)
  • Light-weight
  • Non-Toxic
  • Chemical and corrosion resistant
  • Low moisture absorption
  • High tensile strength
  • Excellent impact resistance

General Applications:

  • Cutting Boards
  • Chemical Tanks
  • Light Duty chain guides
  • Orthotics and prosthetic device
  • Water storage
  • Food Processing
  • Thermoforming
  • Chair and belt guides
  • Wear strips, guide rails and neck guides
  • Corner tracks
  • Spiral Conveyors
  • Extruded profiles and guide rails
  • Other construction parts and components

Characteristics:

  • Very good welding and processing properties
  • Excellent impact strength and twisting endurance
  • Excellent chemical and corrosion resistance
  • Good electrical properties
  • Lightweight, no poison

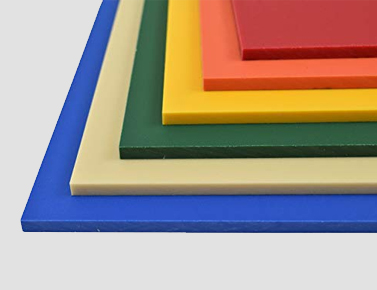

Size for Sheets

Thickness Width Length
3mm~250mm 1000mm~1300mm Any length

Standard size
Thickness 3mm~12mm
1220mm×2440mm √
1500mm×3000mm
1300mm×2000mm √
1000mm×2000mm √

We can also provide any other sizes according to your special needs.

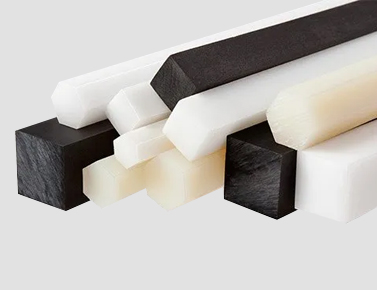

CHART OF PE- HDPE EXTRUDED SQUARE RODS

* Standard Length 1 Meter to 6 Meter


Sl. No 		Size in MM Size in Inch POLYPROPYLENE SQUARE Approx. Weight 300 mm Long
1 16.00 x 16.00 5/8" 0.075
2 20.00 x 20.00 3/4" 0.121
3 25.40 x 25.40 1" 0.230
4 31.70 x 31.70 1 1/4" 0.375
5 38.10 x 38.10 1 1/2" 0.500
6 50.80 x 50.80 2" 0.840
7 63.50 x 63.50 2 1/2" 1.300
8 76.20 x 76.20 3" 1.790
9 100.00 x 100.00 4" 2.860
10 125 x 125 5" 51100

PROFILES PRODUCT RANGE
15X22 35X23
15X40 35X35
25X35 45X55
25X45 50X40
20X40 60X40
30X40 60X50
30X45 85X25
25X50 88X35
30X50 100X62

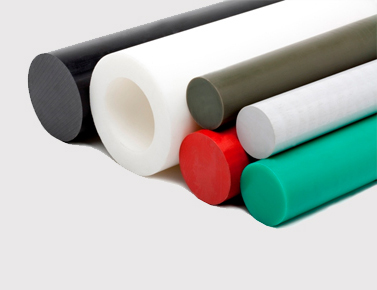

Weight Chart for Rods

Dia in MM APPROX.WT.IN.KG/ FOOT Approx. wt. in Kg / Mtr
16 0.06 0.2
20 0.1 0.32
22 0.12 0.37
25 0.15 0.51
30 0.22 0.72
32 0.25 0.82
35 0.29 0.97
40 0.38 1.25
42 0.42 1.38
45 0.48 1.58
50 0.58 1.93
60 0.84 2.77
65 0.99 3.25
70 1.15 3.76
75 1.31 4.3
80 1.52 5.01
85 1.68 5.52
90 1.88 6.18
95 2.09 6.88
100 2.36 7.75
110 2.8 9.2
115 3.06 10.05
120 3.38 11.09
125 3.61 11.85
130 3.96 13
140 4.62 15.18
150 5.18 17
165 6.34 20.8
180 7.62 25
205 9.85 32.3
230 12.35 40.5
260 15.73 51.5
280 18.44 60.5
300 21.34 70
350 28.65 94

Application

Construction materials for chemical, mechanical, package and electronic industry, eg. tanks, Lab equipment, Etching equipment, Semiconductor processing equipment, machined parts industrial doors, and so on.


Colors:

Natural, Yellow, Black, Blue, Red and any other colours according to customers’ needs.
