Cast Nylon



CAST NYLON is generally superior to extruded Nylon-6.Since it is made by direct polymerisation of caprolactam, the polymer has never been melted and thus has been subjected to any thermal degradation. In addition,its molecular weight (up to 10,00,000) is several fold higher than molecular weight of extruded nylon-6(30,000). Since physical properties of Thermoplastics improve with increasing molecular weight, it has Higher tensile and compressive strength, Greater hardness and modulus of elasticity, Higher wear resistance, Lower distortion at Higher temperatures,Lower moisture,Better dimensional stability, Better resistance to solvents than Extruded Nylon 6.Thus for Bearings,Gears and Structural applications.

CAST NYLON is the result of a new technology in Plastics, which makes available to you any shape or size. No longer are you restricted to the smaller size made by extrusion or injection molding methods. Any type of heavy component is now within your reach. The casting process upgrades the Nylon 66 but with lower moisture absorption and improved strength, it enables production of stress-free stock shapes of almost unlimited size. Cast Nylon Rods


Sheets Rods
Thickness Width (Max.) Length (Max.) Dia Length (Max.)
6 – 500 mm 1300 mm 2500 mm 10 – 500 mm 1000 mm / 1220

AVAILABILITY

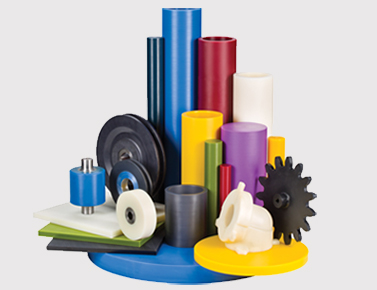

CAST NYLON is available in stock mill shapes or custom cast finished products. Stock items are available in popular shapes such as rods, hollow rods, sheets, blocks, gaskets etc. in various standard sizes. Stock items can be machined quickly and conveniently into a wide variety of finished components. Custom cast components can be produced against specific orders with no limitation of size (geometry) within practicalities of handling and machining.

MACHINING

CAST profiles have excellent machinability. Various parts can thus be machined out to strict tolerance from stocks available in the form of rods, sheets, blocks, etc. Machining of CAST NYLON does not require expertise other than that required for machining of soft metal and can be carried out with wood or metal working equipment’s, such as standard lathes, milling machines, grinders, drill presses etc. CAST NYLON can be turned, drilled, tapped, threaded, reamed, milled, planed, sawn and blanked. A catalogue giving detailed information on machining can be available on request.



ENGINEERING CONSIDERATIONS

CAST NYLON products replace metals in various engineering applications on account of their outstanding characteristics such as:

  • Reduction in weight
  • Self lubricating
  • Economy
  • Shock resistance
  • Improved dimensional
  • stability
  • Vibration damping performance
  • Excellent chemical resistance
  • High wear and abrasion resistance
  • Noise reduction
  • High service temperature
  • High tensile and compressive strengths
  • Machining


APPLICATIONS

Industry Applications
Engineering Gears, cams, sprockets, bushes, bearings, gaskets, pulleys, liners.
Textile Loom pivot bearings, gears for loom and knitting machines, shuttles, rollers, cams and cam followers.
Metal Bearings, bearings cages, slipper pads, gears, bushes, wear strips, rollers, eccentric rollers, wobble box inserts.
Material Handing Equipment's

a) Cranes / Fork lifts / Conveyors
b) Ropeways 		Crane sheaves, bearing pads, bushes, rollers, thrust washers, slides, guides, idle and drive sprockets, gears, wear strips and plates.

Wheel liners (tyres), wheels, bushes.
Automobile Wear rings, pads, swivel bushes, throttle linkages, bushes, shackle pin bushes.
Marine Bushes, gears, rings, trunnion bearings, rollers and roller bearings, stern tubes.
Paper /Sugar Mill Gears, bushes,   pulleys, rollers, bearings.
Bottling and Food Processing Starwheels, scrolls, guides, cams, cam followers, rollers, timing screws.
Railways Bushes, wear plates.
Chemical Balls, gaskets, liners, nuts & bolts.


Technical Property Chart

Melting Temperature 2150C
Density 1.14-1.16g/cm3
Tensile strength at yield 750-850 kg/cm3
Elongation at yield 12-13%
E-modulus 24,000 to 26,300 kg/cm3
Hardness Rockwell 230C R 107 -112
Durometre 230C D 82-89
Temperature of deflection 800C
Compression Strength at yield 940 kg/cm3
Notched impact strength 5-11 kg cm/cm
Impact strength at +200C 10 kg cm/cm
Water absorption at 200C 0.3-3%
Flexural strength 1000-1350 kg/cm2
Resistance to heat (continuous) In Air 800C
In Water 1000C
In Oil 1400C
Effect of weak acids Resistant
Effect of strong acids Attacked
Effect of weak alkalies None
Effect of strong alkalies None
Effect of Organic Solvents Resistant to common solvents
We confirmed that the above mentioned properties compliy with the material supplied
